Like the legendary name :
pandora is the mystical box that absorbs all the problems in your car audio system. from Venom lab and assisted by the venom Fighter we try to make you realize, that this was an actual car audio.
pandora VPR-1 is the birth of new begining from digital sound processor era. so.......
why should you hesitate ?
now we have the way.
Specification :
Dimension : 135 x 46 x 258 mm
Frequency Response : 5 kHz - 20 kHz
Comments :
- Channels: 6
- Circuit: CLASS D Digital
- RMS Power: 6 x 80W
- Damping Factor: >100
- Signal - to - Noise Ratio: >90 dB
- Channel Separation: >60 dB
- THD & N: 0.05%
- Input Impedance: >47 kOhms
- DSP Processor: Cirrus Logic Single Core 32 bit, 8 channel, 192 kHz
- High Level Inputs via Cable set: CH1 / CH2 / CH3 / CH4 / CH5 / CH6
- Additional Inputs: TOSLINK (HD Audio, optical, 12 - 96 kHz, Stereo) AUX (Cinch/RCA, Stereo)
- Auto Turn On Function: Switchable using, V + 12 turn on signal for additional devices is provided to the REM cable
- Fuse Rating: 1 x 35A
- Bluetooth Player: APTX HD
Specification :
Dimension : P: 122 x L: 41 x T: 200 mm
Frequency Response : 5 Hz - 20 KHz
Comments :
Channel : 6
Circuit : Class D Digital
RMS Power : 4x60W + 2x100W
Damping Factor : >100
Signal To Noise Ratio : >90dB
Channel Separation : >60dB
THD&N : 0.05%
Input Impedance : >47 kOhms
DSP Processor : Analog Device ADS21488
ADC/DAC : AKM 32Bit/192kHz
High Level Input Via Cable-Set : FL/FR/RL/RR
Low Level In : 0.4V (4 Channel)
High Level In : 8V ( 4 Channel)
BT Input : 5.0 APTXHD
Optical Input : 96 Stereo
Auto Turn On Function : Swithable, Ehile Using, a+12 Turn On Signal For Additional Device Is Provided To The REM Cable
Fuse Rating : 1 x 35A
Specification :
Dimension : P: 200 x L: 122 x T: 41 mm
Comments :
Input: 4 Channel RCA / Hi Input / Optical
Output: 8 Channel
Bluetooth: APTX HD
Specification :
Dimension : 122 x 41 x 200 mm
Frequency Response : 5 Hz - 20 KHz
Comments :
Channel : 6
Circuit : Class D Digital
RMS Power : 4x60W + 2x100W
Damping Factor : >100
Signal To Noise Ratio : >90dB
Channel Separation : >60dB
THD&N : 0.05%
Input Impedance : >47 kOhms
DSP Processor : Analog Device ADS21488
ADC/DAC : AKM 32Bit/192kHz
High Level Input Via Cable-Set : FL/FR/RL/RR
Low Level In : 0.4V (4 Channel)
High Level In : 8V ( 4 Channel)
BT Input : 5.0 APTXHD
Optical Input : 96K Stereo
Auto Turn On Function : Swithable, Ehile Using, a+12 Turn On Signal For Additional Device Is Provided To The REM Cable
Fuse Rating : 1 x 35A
Specification :
Comments :
POWER SUPPLY
- Voltage: 11 - 15 VDC
- Idling current: 0.4 A
- Switched off without DRC: 2.5 mA
- Switched off with DRC: 4 mA
- Remote IN voltage: 7 - 15 VDC (1.3 mA)
- Remote OUT voltage: 12 VDC (130 mA)
POWER OUTPUT
- Effective power: 4 x 25 W
- Peak power: 4 x 75 W
SIGNAL STAGE
- Distortion - THD @1kHz, 1V RMS Output: 0.005%
- Bandwith @ -3 dB: 10 - 22 kHz
- Master Input: 95 dBA
- Channel Separation @1kHz: 88 dB
- Input Sensitivity (High Level): 2 - 15 V RMS
- Max Output Level (RMS) @0.1% THD: 4 V RMS
INPUT STAGE - High Level (Speaker): FR- FR+ FL- FL+ RL- RL+ RR- RR+
OUTPUT STAGE - Low Level: CH1 CH2 CH3 CH4 CH5 CH6
Specification :
Dimension : P: 150 x L: 112 x T: 35 mm
Frequency Response : 10 Hz - 18 KHz
Output Power in 4 ohm : 4 x 30 W
Input :
- Input Sensitivity
- Signal to Noise Ratio
- THD & Noise
- Low Pass & High Pass
- Bast Boost
Comments :
- Product weightProsessor : 100 g
- Buit in amplifier Output 4 channel 4 x 30 W
- Include Bluetooth 4.2
- Rated Power 4 Ohm - 32 Ohm / 12 V
Specification :
Comments :
Signal Function :
Signal Input :
- 6 Channel High level Input
- 2 Channel Low Level input
- Bluetooth Music Lossless
- Digital Optical input
- USB Hi Rest Player
Signal Output :
- Power output 8X30watt
- 10 Channel low level output
- 10 channel independent level
- 31 Band EQ, Slope, Cut and Time Delay
Specification :
Comments :
POWER SUPPLY
- Voltage: 11 - 15 VDC
- Idling current: 0.4 A
- Switched off without DRC: 2.5 mA
- Switched off with DRC: 4 mA
- Remote IN voltage: 7 - 15 VDC (1.3 mA)
- Remote OUT voltage: 12 VDC (130 mA)
POWER OUTPUT
- Effective power: 4 x 25 W
- Peak power: 4 x 75 W
SIGNAL STAGE
- Distortion - THD @1kHz, 1V RMS Output: 0.005%
- Bandwith @ -3 dB: 10 - 22 kHz
- Master Input: 95 dBA
- Channel Separation @1kHz: 88 dB
- Input Sensitivity (High Level): 2 - 15 V RMS
- Max Output Level (RMS) @0.1% THD: 4 V RMS
INPUT STAGE - High Level (Speaker): FR- FR+ FL- FL+ RL- RL+ RR- RR+
OUTPUT STAGE - Low Level: CH1 CH2 CH3 CH4 CH5 CH6
Specification :
Dimension : 158 x 45 x 180 mm
Frequency Response : 5 Hz - 20 KHz
Comments :
- Channels: 12
- Damping Factor: >100
- Signal - to - Noise Ratio: >90 dB
- Channel Separation: >60 dB
- THD & N: 0.05%
- Input Impedance: >47 kOhms
- DSP Processor: Cirrus Logic Single Core 32 bit, 8 channel, 192 kHz
- High Level Inputs via Cable set: CH1 / CH2 / CH3 / CH4 / CH5 / CH6 / CH7 / CH8
- Additional Inputs: TOSLINK (HD Audio, optical, 12 - 96 kHz, Stereo) AUX (Cinch/RCA, Stereo)
- Auto Turn On Function: Switchable using, V + 12 turn on signal for additional devices is provided to the REM cable
- Bluetooth Player: APTX HD
Specification :
Dimension : 158 x 50 x 240 mm
Frequency Response : 5 Hz - 20 KHz
Comments :
- Channels: 12
- Circuit: CLASS D Digital
- RMS Power: 8 x 80W / 4 x 250W
- Damping Factor: >100
- Signal - to - Noise Ratio: >90 dB
- Channel Separation: >60 dB
- THD & N: 0.05%
- Input Impedance: >47 kOhms
- DSP Processor: Cirrus Logic Single Core 32 bit, 8 channel, 192 kHz
- High Level Inputs via Cable set: CH1 / CH2 / CH3 / CH4 / CH5 / CH6
- Additional Inputs: TOSLINK (HD Audio, optical, 12 - 96 kHz, Stereo) AUX (Cinch/RCA, Stereo)
- Auto Turn On Function: Switchable using, V + 12 turn on signal for additional devices is provided to the REM cable
- Bluetooth Player: APTX HD

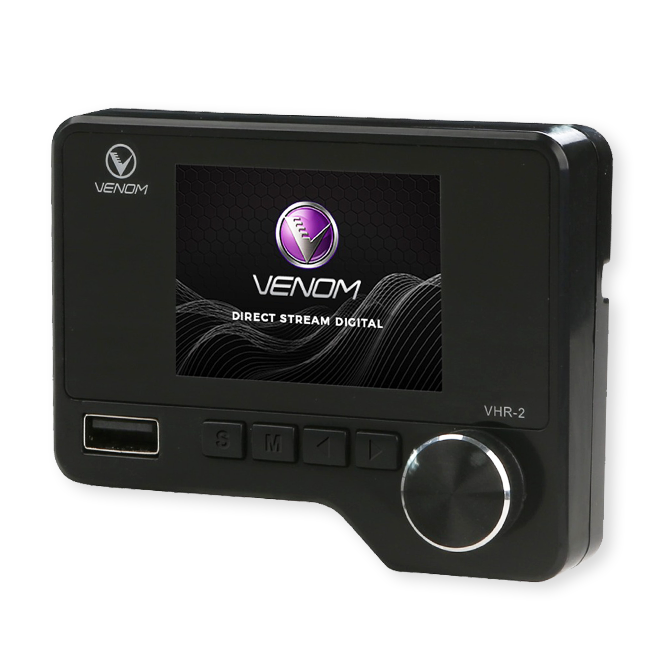

Specification :
Dimension : P: 88 x L: 70 x T: 20 mm
Comments :
Decoding Chip : Ti OMAP
ADC : AKM
ROM : FSMT
Electrical Inductance : Low resistance high current metal alloy
Cable : 5 core independent shielding high - definition copper oxide national standard core
Available for : Compatible VHR-2 MU / VPR-4.6 MKIII / VPR-2 MKII / VPR-4.10HD / VPR-4.12HD
PCB : Duty heavy gold black
Dimension of screen : 82.3 X 42.4 mm

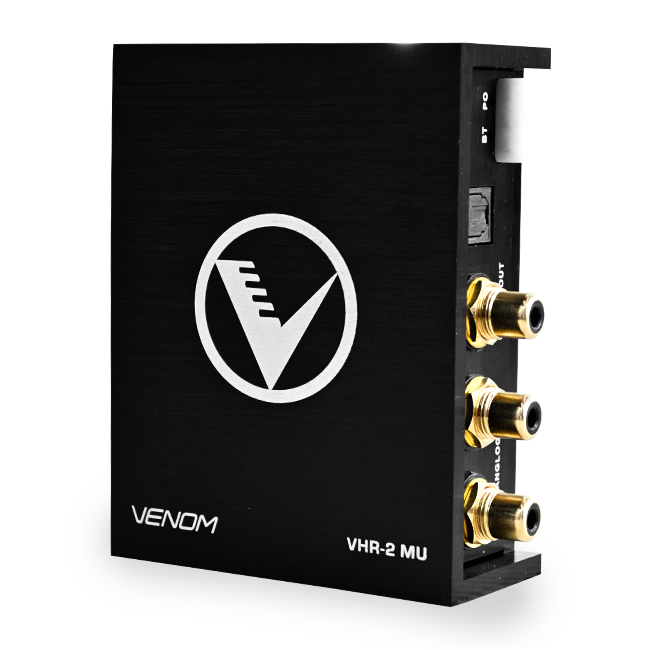

Specification :
Comments :
Channel : 2CH
AUX Input : 0.6V
BT Input : 5.0APTX HD
RMS Out :
- AUX : 1.76V
- BT : 1.76V
- USB : 2.13V
Optical Out : 1FFS
T.H.D Analog Output : <0.03%
T.H.D Digital Output : <0.001%
Frequency Range :
- Analog Output : 14-20K
- Digital Output : 5-30K
S/N Analog Output : 98dB
S/N Digital Output : 110dB
Specification :
Frequency Response : 10 - 20KHz
Phase : 0 - 180 degrees
Comments :
1. POWER SUPPLY :
- Voltage 11 - 15 VDC
- Idling current 0.4 A
- Switched off with DRC 4 mA
- Switched off without DRC 2.5 mA
- Remote IN voltage 7 - 15 VDC (1.3 mA)
- Remote OUT voltage 12 VDC (130 mA)
2. SIGNAL STAGE :
- Distortion - THD @1kHz, 1V RMS Output = 0.005%
- Bandwith @-3dB = 10 - 22kHz
- Channel Separation @ 1 kHz = 88 dB
- Input Sensitivity [ High level ] = 2 - 15 V RMS
- Input Sensitivity [ Low level ] = 0.6 - 5 V RMS
- Max Output Level (RMS) @0.1% THD = 4 V RMS
